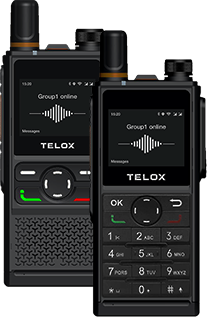

• TE320

    STYLISH SHAPE
    SOLID MADE


    Dual SIMs

    Refined and Forceful Sound

    4000mAh Long Lasting Battery

    Reliable and Ruggedized

    API Ready for PTT Applications

Worldwide LTE bands and Dual SIMs


Integrated with the most global LTE bands and supported dual SIMs. Truly realize the function of global use

API Ready for PTT Applications


Prepared for PTT application integration . Friendly open for the global software partners and provide more options for the customers for choices.

Reliable and Ruggedized


It is IP67 certified to resist water, dust and shocks and can be dropped from 1.5 m high.Ensure continuous communication in the harsh environments and have key conversations with your team.

Diverse Physical Buttons


Equipped with the professional channel knob , SOS button and volume buttons for friendly and easier operation. Moreover , it was designed with 2 programmable buttons for the integration of specific functionalities.

Comfortable Visual Sense


Designed with a 2 inch color screen , 320*240 resolution and 200 PPI for the customers to review and check the information as well as do settings easily.

Refined and
Forceful Sound

Equipped with 3 Watts superb loud speakers . With our countless sound debugging, you can feel the power of the refined and enforced sound during your Team Communications.

Reliable and Ruggedized

It is IP67 certified to resist water, dust and shocks and can be dropped from 1.5 m high. Ensure continuous communication in the harsh environments and have key conversations with your team.

4000mAh Bigger Battery Capacity

Removable 4000mAh lithium polymer battery and provide a more safe and reliable use. It supports over 48 hours of 10/10/80 operation (10% transmit, 10% receive, 80% standby).

TE320 Specifications

  • Physical Characteristics
    Specifications
  • Dimension
    129mm*58mm*26.5mm 5.07in*2.28in*1.04in
  • Weight
    230g
  • Environmental
    Specifications
  • Dust And Water Intrusion(Ingress Protection)
    IP67
  • Drop Test
    1.5m
  • Working temperature
    -20°C to + 60°C (-4°F to 140°F)
  • Storage temperature
    -30°C to + 70°C (-22°F to 158°F )
  • Humidity
    0%RH~90%RH
  • INTERACTION & DISPLAY
    Specifications
  • Diagonal dimension
    2.0 in
  • Resolution
    320*240
  • PPI
    200
  • Type
    TFT
  • Buttons and Keyboards
    Power Button Emergency Button PTT Button Navigation Button Volume+&Volume- Buttons Programmable Button X 1 Tri-Color LED(Red, Blue, Green) Text to Speech(Pre-installed TTS Engine)
  • HARDWARE
    Specifications
  • Processor
    Quad-core ARM Cortex-A53, MPCore Operating at 1.5GHz
  • Memor
    1G RAM
    8GB Internal Storage
    Storage is expandable with external 128 GB microSD™ card
  • Processor
    Quad-core ARM Cortex-A53, MPCore Operating at 1.5GHz
  • Batter
    4000 mAh, Li-Polymer, Removable
  • Sensor Platform
    Accelerometer Sensor
  • CONNECTIVITY
    Specifications
  • Cellular Network
    GSM: B2/3/5/8
    WCDMA: B1/B2/B4/B5/B8
    TDS(B34/39)+CDMA(BC0)
    FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/
    20/25/26/28a/28b/66
    TDD-LTE: B34/B38/B39/B40/B41
  • LTE Categor
    LTE FDD R9 Cat.4 150Mbps/50Mbps
  • WLAN
    IEEE 802.11 b/g/n/ 2.4/5GHz
  • Bluetooth
    V4.2+LE+HS+EDR
  • Location
    GPS, GLONASS, BEIDOU and AGPS
  • NFC
    Optional
  • INTERFACE
    Specifications
  • Card Slot
    Nano-SIM Card Slot * 2
    Micro-SD Card Slot * 1
  • M6 Audio Interface
    Support PTT Earphone, Remote Speaker Microphone and External Speaker, External Camera
  • USB
    Type-C, USB 2.0, Support OTG
  • PLATFORM
    Specifications
  • Operating System
    Android 8.1
  • Preloaded Applications
    Push-to-Talk APP (Please check with your service provider)
  • AUDIO
    Specifications
  • Dual-Microphone
    Dual-Mic with Noise Cancellation
  • Speaker
    3 Watt Radio-grade Speaker
  • ACCESSORIES
    Specifications
  • STANDARD ACCESSORIES
    USB Cable
    Travel Charger
    Battery
    Belt Clip
    Quick Start Guide
  • OPTIONAL ACCESSORIES
    Desktop Charger
    Multi-unit Charger
    Remote Speaker Microphone
    PTT Earphone
    Airtube PTT Earphone
    Head mounted Camera with Headset
    Nylon Carrying Case
